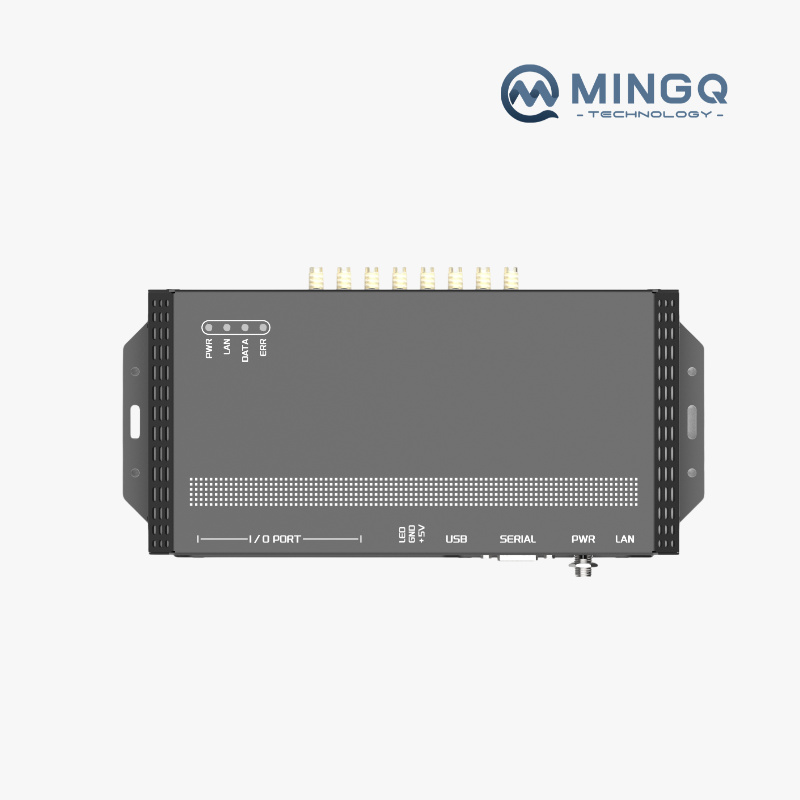

8-channel UHF RFID Tag Reader RFLY-MR8 for File Cabinet Identification-1
Product introduction
RFLY-MR8 is an ultra-high frequency eight-channel reader/writer independently developed by MingQ. It boasts excellent sensitivity, superior inventory capabilities, and stable and reliable reading performance. It features a wide voltage supply range and integrates various communication interfaces including RJ45, RS232, USB Type-C, RS485 (customizable), and CAN (customizable). It has eight RF antenna ports, effectively saving on peripheral costs. It also features 16DI and 16DO GPIO input/output interfaces. Suitable for multi-node identification scenarios such as shelf identification management and RFID smart cabinet management.
Key features
- Excellent sensitivity, up to -85dBm
- Excellent inventory capabilities and stable, reliable read performance.
- Global Gen2 platform, adapt to different countries and regions RFID application needs.
- Wide voltage power supply, flexibly adaptable to different industrial application scenarios
- Multiple communication methods, integrating RJ45, RS232, Type-C, RS485, and CAN interfaces.
- Multiple working modes, supporting common active and passive reading modes
- 8-channel RF interface, suitable for multi-node reading applications.
Applications
For different application scenarios, we can help to choose products with corresponding distance and communication functions to meet the requirements of automated production identification.
Parameters
RFID Features | |
Protocol |
EPC Global Class1 Gen2 (ISO 18000-6C) |
Frequency |
China: 920-925MHz (SRRC) America: 902-928MHz (FCC part 15) Europe: 865-868MHz (ETSI EN 302 208) 840-960MHz: Can be customized according to needs and local status |
Output Power |
5-33dBm adjustable, step interval 1 dB, precision ±1dB |
Sensitivity |
-85dBm |
Inventory Speed |
Max.900tag/s |
Reading Range |
The recognition distance is ≥15m, and the reading distance varies depending on the tag model.) |
Communication Peripheral Interfaces |
TCP Server、TCP Client、UDP |
Serial communication |
RS232, USB Type-C (debugging port), RS485 (customization required), CAN (customization required) |
GPO interface |
Terminal blocks, 16 optocoupler-isolated outputs, compatible with 5-24V levels, output low-level current tolerance Max. 500mA. |
Tag RSSI |
Support |
Upgrade |
Support Firmware online upgrading |
Development Language |
Support C#, JAVA |
Power supply | |
Input Voltage |
9～32VDC IEEE 802.3af/at PoE |
Physical Characteristics | |
Outfit |
Aluminium alloy |
Size |
Without interfaces: 230.0mm(L)*106.0mm(W)*35.0mm(H) With interfaces: 230.0mm(L)*123.0mm(W)*35.0mm(H) |
Weight |
- |
Color |
Deep gray |
Working Environment | |
Working Temperature |
-25℃~+60℃ |
Storage Temperature |
-30℃~+85℃ |
Working Humidity |
5%~95%RH |
Application |
Multi-node identification scenarios such as shelf identification management and RFID smart cabinet management. |
Standard Configuration |
Power adapter、Network cable(2m)
|
Dimensions
Product introduction
RFly-MR16 is an excellent 16-channel UHF reader with outstanding inventory capacity and stabilized reading performance. Meanwhile, the abundant RF antenna port can effectively save peripheral overhead. All these advantages make it suitable for application in RFID file cabinet, shelf identification management and other scenarios.
Key features
- Global Gen2 platform, adapt to different countries and regions RFID application needs.
- Excellent reading distance, stable and reliable reading performance.
- Excellent sensitivity, with a sensitivity of up to -85dbm
- Wide voltage power supply, flexible and capable of adapting to different industrial application scenarios
- Multiple communication methods, integrating RJ45, RS232, Type-C, RS485 and CAN interfaces
- Multiple working modes, supporting common active and passive reading modes
- 16-channel RF interface, suitable for multi-node reading applications.
Applications
For different application scenarios, we can help to choose products with corresponding distance and communication functions to meet the requirements of automated production identification.
Parameters
RFID Features | |
Protocol |
EPC Global Class1 Gen2 (ISO 18000-6C) |
Frequency |
China: 920-925MHz (SRRC) America: 902-928MHz (FCC part 15) Europe: 865-868MHz (ETSI EN 302 208) 840-960MHz: Can be customized according to needs and local status |
Output Power |
5-33dBm adjustable, step interval 1 dB, precision ±1dB |
Sensitivity |
-85dBm |
Inventory Speed |
Max.900tag/s |
Reading Range |
The recognition distance is ≥ 15 meters. The reading distance varies depending on the type of the label. |
Communication Peripheral Interfaces |
TCP Server、TCP Client、UDP |
Antenna Interface |
16 channel SMA-K (outside screw inner hole) connector |
GPO interface |
Terminal block, 16-channel optocoupler isolated output, compatible with 5-24V levels,
Output port low-level current limit: Max. 500mA
|
Tag RSSI |
Support |
Upgrade |
Support Firmware online upgrading |
Development Language |
Support C#, JAVA |
Power supply | |
Input Voltage |
9~32VDC、IEEE 802.3af/at PoE |
Physical Characteristics | |
Outfit |
Aluminium alloy |
Size |
Without interface: 230.0mm (L) * 106.0mm (W) * 35.0mm (H) With interface: 230.0mm (L) * 123.0mm (W) * 35.0mm (H)
|
Weight |
- |
Color |
Deep gray |
Working Environment | |
Working Temperature |
-25℃~+60℃ |
Storage Temperature |
-30℃~+85℃ |
Working Humidity |
10%~95%RH |
Application |
Multi-node identification scenarios such as shelf identification management and RFID smart cabinet management. |
Configuration |
±15KV air discharge, ±8KV contact discharge
|

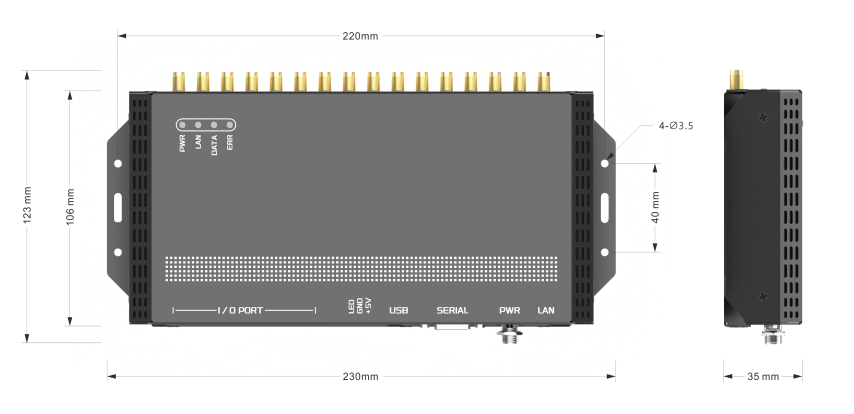

Dimensions
